Kit del Cabezal Laser
85,00€
Código SKU: SKUK003

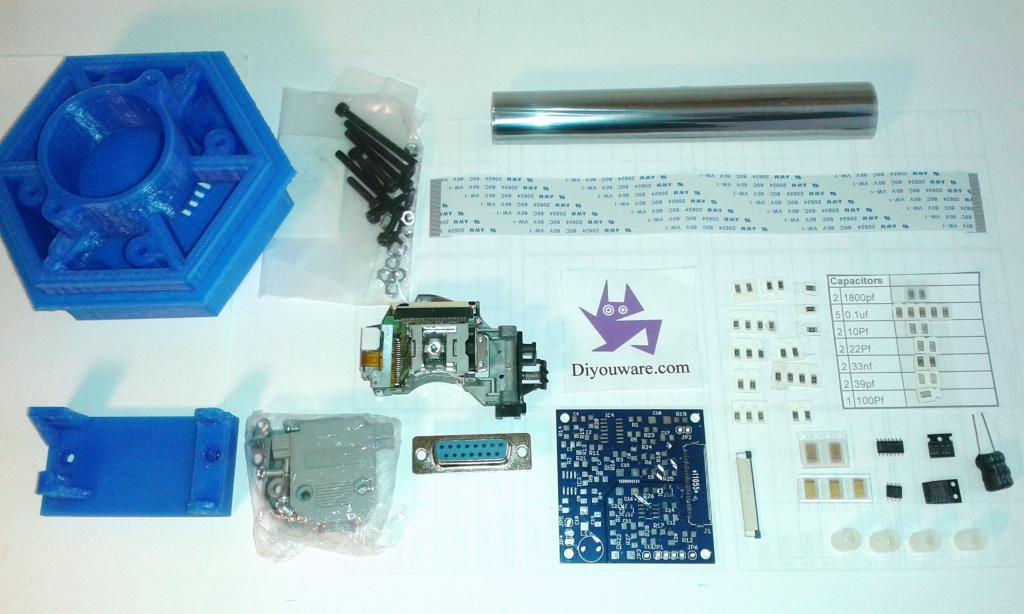

Este kit incluye los componentes necesarios para construir el Cabezal Láser.
| SKU | Cantidad | Nombre |
|---|---|---|
| SKU0400 | 1 | Hexágono del Cabezal Laser |
| SKU0401 | 1 | Cubierta del Cabezal Laser |
| SKU0402 | 1 | Soporte del PHR-803T |
| SKU0403 | 1 | PCB de Diyouware Pickup Driver V3.3 |
| SKU0404 | 1 | Toshiba Optical Pickup PHR-803T |
| SKU0405 | 1 | Cable plano 0.5pitch x 45pines x 200mm |
| SKU0406 | 1 | Conector FPC 0.5pitch x 45pines top |
| SKU0407 | 1 | Pieza de Solar Film (tipo espejo) |
| SKUT330 | 3 | Tornillo allen M3 x 30mm |
| SKUT318 | 2 | Tornillo allen M3 x 18mm |
| SKUT335 | 1 | Tornillo allen M3 x 35mm |
| SKUT314 | 4 | Tornillo allen M3 x 14mm allen screws (Pickup Driver PCB)) |
| SKUTN03 | 10 | Tuerca M3 |
| SKU0408 | 1 | Conjunto de componentes electrónicos para montar la placa Pickup Driver V3.3 |
| SKU0409 | 4 | Espaciadores de PCB M3 x 10mm |
| SKU0410 | 1 | Conector DB15 hembra 2 filas con carcasa |
Los componentes electronicos incluidos son todos los necesarios para soldar la PCB:
| Componente | Valor | Tipo |
|---|---|---|
| C1 | 22uf - 16V | Type C |
| C2 | 39pf | C1206K |
| C3 | 33nf | C1206K |
| C4 | 39pf | C1206K |
| C5 | 22Pf | C1206K |
| C6 | 22Pf | C1206K |
| C7 | 100Pf | C1206K |
| C8 | 10Pf | C1206K |
| C9 | 10Pf | C1206K |
| C10 | 100uf - 16V | Type C |
| C11 | 33nf | C1206K |
| C12 | 0.1uf | C1206K |
| C13 | 0.1uf | C1206K |
| C14 | 1800pf | C1206K |
| C15 | 22uf - 16V | Type C |
| C16 | 100uf - 16V | Type C |
| C17 | 0.1uf | C1206K |
| C18 | 100uf - 16V | Type C |
| C19 | 0.1uf | C1206K |
| C20 | 1800pf | C1206K |
| C21 | 0.1uf | C1206K |
| IC1 | LMV321M5 | SOT23-5PIN |
| IC2 | TC4425AVOA | SOIC-8PIN |
| IC3 | TLC2272D | SOIC-8PIN |
| IC4 | TLC2274 | SOIC-14PIN |
| IC5 | LMV321M5 | SOT23-5PIN |
| L1 | 100uh | We-Ti series |
| JMP1 | 0R | R1206 |
| JMP2 | 0R | R1206 |
| R1 | 18K | R1206 |
| R2 | 10K | R1206 |
| R3 | 18K | R1206 |
| R4 | 10K | R1206 |
| R5 | 56K | R1206 |
| R6 | 56K | R1206 |
| R7 | 22k | R1206 |
| R8 | 39K | R1206 |
| R9 | 10K | R1206 |
| R10 | 1K2 | R1206 |
| R11 | 180K | R1206 |
| R12 | 47k | R1206 |
| R13 | 22k | R1206 |
| R14 | 22k | R1206 |
| R15 | 180K | R1206 |
| R16 | 68K | R1206 |
| R17 | 59Ω | R1206 |
| R19 | 2k2 | R1206 |
| R20 | 68K | R1206 |
| R21 | 39K | R1206 |
| R22 | 22k | R1206 |
| R23 | 1K2 | R1206 |
| R24 | 1K2 | R1206 |
| R25 | 1K2 | R1206 |
| R26 | 2k2 | R1206 |
| R27 | 2k2 | R1206 |
| R28 | 18k | R120 |
Para completar el Cabezal Laser necesitarás además los siguientes materiales que NO ESTAN INCLUIDOS en este kit:
| Cantidad | Nombre |
|---|---|
| 1 | Cable y pines para conectar el Pickup Driver al conector DB15 (ver Ensamblar el Cabezal Láser) |
| 1 | Hilo de estaño |
