Laser Toolhead Kit
85,00€
SKU: SKUK003

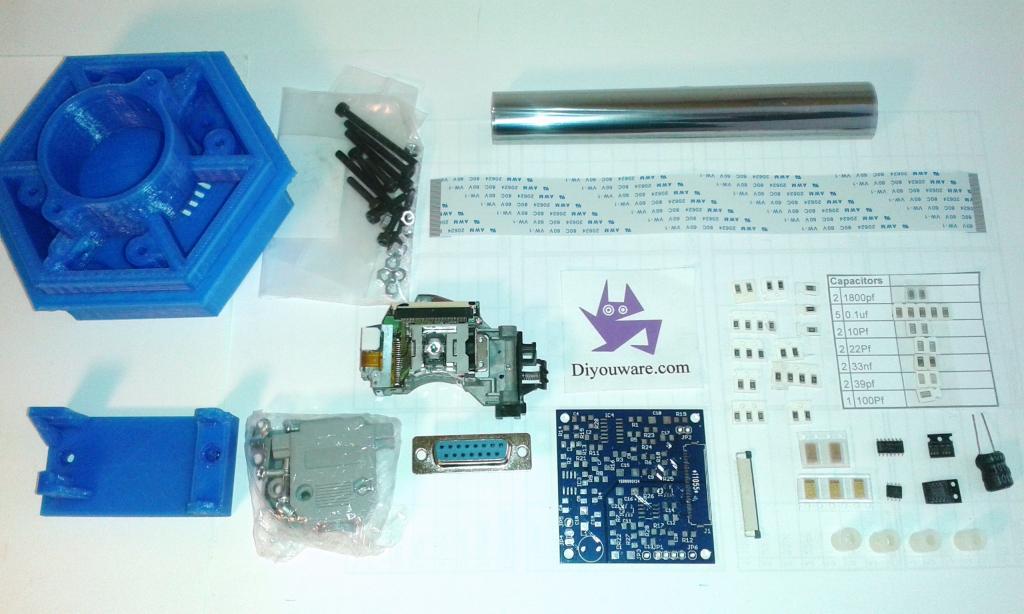

This kit includes the following materials:
| SKU | QTY | Name |
|---|---|---|
| SKU0400 | 1 | Laser Toolhead Hexagon |
| SKU0401 | 1 | Laser Toolhead Cover |
| SKU0402 | 1 | PHR-803T Holder |
| SKU0403 | 1 | Diyouware Pickup Driver V3.3 PCB |
| SKU0404 | 1 | Toshiba Optical Pickup PHR-803T |
| SKU0405 | 1 | Flat ribbon cable 0.5pitch x 45pines x 200mm |
| SKU0406 | 1 | FPC Connector 0.5pitch x 45pines top |
| SKU0407 | 1 | Piece of Solar Film (mirror type) |
| SKUT330 | 3 | M3 x 30mm allen screws |
| SKUT318 | 2 | M3 x 18mm allen screws |
| SKUT335 | 1 | M3 x 35mm allen screws |
| SKUT314 | 4 | M3 x 14mm allen screws (Pickup Driver PCB)) |
| SKUTN03 | 10 | M3 nut |
| SKU0407 | 1 | Set of electronic components to assemble the Pickup Driver V3.3 PCB |
| SKU0408 | 4 | M3 x 10mm Nylon PCB spacers |
| SKU0409 | 1 | Female DB15 Connector 2 rows + casing |
The electronic components included are all needed to assemble the driver circuit:
| Part | Value | Package |
|---|---|---|
| C1 | 22uf - 16V | Type C |
| C2 | 39pf | C1206K |
| C3 | 33nf | C1206K |
| C4 | 39pf | C1206K |
| C5 | 22Pf | C1206K |
| C6 | 22Pf | C1206K |
| C7 | 100Pf | C1206K |
| C8 | 10Pf | C1206K |
| C9 | 10Pf | C1206K |
| C10 | 100uf - 16V | Type C |
| C11 | 33nf | C1206K |
| C12 | 0.1uf | C1206K |
| C13 | 0.1uf | C1206K |
| C14 | 1800pf | C1206K |
| C15 | 22uf - 16V | Type C |
| C16 | 100uf - 16V | Type C |
| C17 | 0.1uf | C1206K |
| C18 | 100uf - 16V | Type C |
| C19 | 0.1uf | C1206K |
| C20 | 1800pf | C1206K |
| C21 | 0.1uf | C1206K |
| IC1 | LMV321M5 | SOT23-5PIN |
| IC2 | TC4425AVOA | SOIC-8PIN |
| IC3 | TLC2272D | SOIC-8PIN |
| IC4 | TLC2274 | SOIC-14PIN |
| IC5 | LMV321M5 | SOT23-5PIN |
| L1 | 100uh | We-Ti series |
| JMP1 | 0R | R1206 |
| JMP2 | 0R | R1206 |
| R1 | 18K | R1206 |
| R2 | 10K | R1206 |
| R3 | 18K | R1206 |
| R4 | 10K | R1206 |
| R5 | 56K | R1206 |
| R6 | 56K | R1206 |
| R7 | 22k | R1206 |
| R8 | 39K | R1206 |
| R9 | 10K | R1206 |
| R10 | 1K2 | R1206 |
| R11 | 180K | R1206 |
| R12 | 47k | R1206 |
| R13 | 22k | R1206 |
| R14 | 22k | R1206 |
| R15 | 180K | R1206 |
| R16 | 68K | R1206 |
| R17 | 59Ω | R1206 |
| R19 | 2k2 | R1206 |
| R20 | 68K | R1206 |
| R21 | 39K | R1206 |
| R22 | 22k | R1206 |
| R23 | 1K2 | R1206 |
| R24 | 1K2 | R1206 |
| R25 | 1K2 | R1206 |
| R26 | 2k2 | R1206 |
| R27 | 2k2 | R1206 |
| R28 | 18k | R1206 |
Additionally you will need the following materials to complete the Laser ToolHead (NOT INCLUDED in this kit) :
| QTY | Name |
|---|---|
| 1 | Wiring & header pins to connect Pickup Driver with DB15 Connector (see Aseembling the Laser Toolhead) |
| 1 | Solder wire |
