3D printer Toolhead Kit
49,00€
SKU: SKUK006

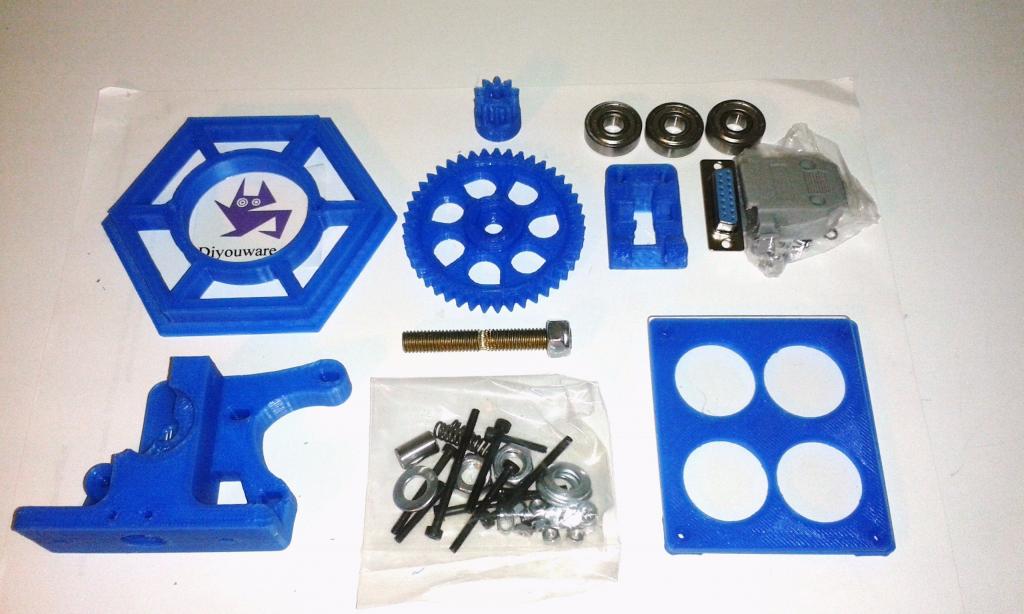

If you also want to 3D print with TwinTeeth you will need this kit.
| SKU | QTY | Name |
|---|---|---|
| SKU0600 | 1 | 3D Printer Toolhead Hexagon |
| SKU0601 | 1 | Glass holder plastic part |
| SKU0602 | 1 | M8 Hobbed bolt |
| SKU0603 | 3 | 608 Bearing |
| SKUTW08 | 3 | M8 washers |
| SKUTY08 | 1 | M8 Nyloc nut |
| SKU0604 | 2 | 4mm x 5-10mm Springs |
| SKUT335 | 2 | M3 x 40mm allen screws (Idler springs) |
| SKUT320 | 1 | M3 x 25mm allen screws (Idler hinge) |
| SKUT330 | 2 | M3 x 20mm allen screws (Hexagon) |
| SKUT318 | 2 | M3 x 18mm allen screws (Hotend) |
| SKUT310 | 3 | M3 x 12mm allen screws (Motor) |
| SKUT308 | 1 | M3 x 8mm allen screws (Pulley) |
| SKU0605 | 1 | 8x10mm steel rod |
| SKUTN03 | 6 | M3 nut |
| SKUTW03 | 5 | M3 washer |
| SKU0608 | 1 | 70 x 80mm x 1.6mm Glass (3D printing surface) |
| SKU0609 | 1 | Gregg extruder's printed parts |
| SKU0610 | 1 | Female DB15 Connector 2 rows + casing |
Additionally you will need the following materials (NOT INCLUDED in this kit) :
| Qty | Name |
|---|---|
| 1 | A4988 Motor Driver + Radiator (shared with Dispenser Toolhead) |
| 1 | J-head type Hot-end (with resistor and thermistance) |
| 1 | NEMA 17 motors - 45mm |
| 1 | Wiring |
| 1 | Epoxy glue (glue the glass holder) |
