TwinTeeth Plus Framework Kit
550,00€
SKU: SKUAK01

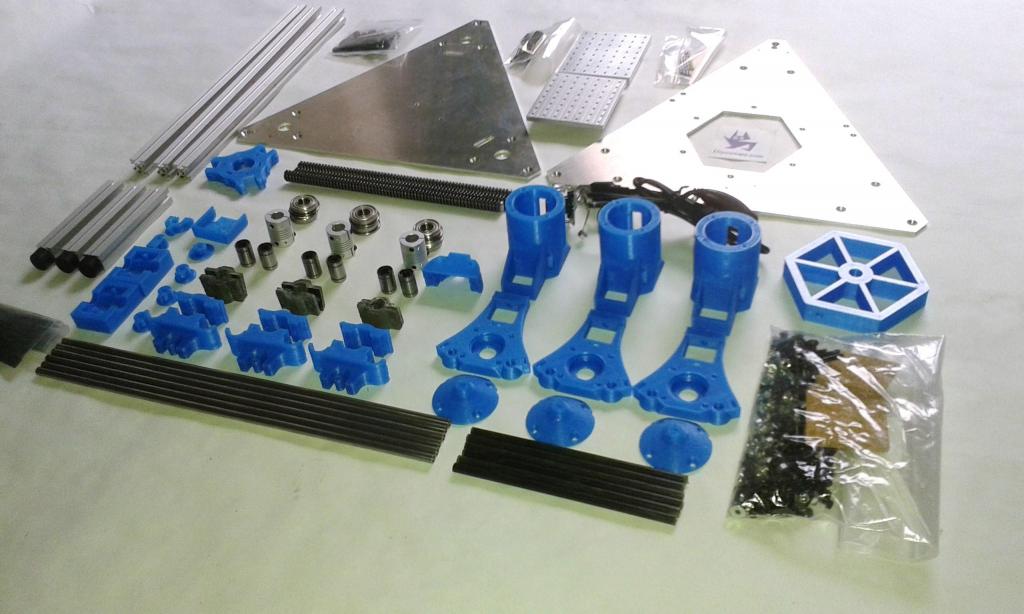

This kit includes most of the materials needed to build the framework.
All the materials are already cut, drilled and treaded so they are almost ready to assemble.
This is your best option if you don't own a 3D printer or if you prefer a robust aluminium framework easy to build.
It includes the following materials:
| SKU | Qty | Material name |
|---|---|---|
| SKUA001 | 1 | Bottom Triangle - 3mm aluminium sheet |
| SKUA002 | 1 | Top Triangle - 3mm aluminium sheet |
| SKU0010 | 3 | Column - 300mm - 15x15mm aluminium extrusion |
| SKU0011 | 3 | Leg - 90mm - 15x15mm extrusion |
| SKU0100 | 1 | Aluminium fixture bed - 70 x 80mm |
| SKU0101 | 1 | Aluminium round tube 20mm dia. x 10mm |
| SKU0102 | 1 | Aluminium stencil - 70 x 80mm |
| SKU0203 | 6 | Half anti-backlash nut |
| SKU0204 | 3 | Springs 6mm(Dh)x4mm(dd) x 15mm(the) - 0.9mm wire -7.85 N/mm |
| SKU0301 | 6 | Glass fibber rod 6x3x136mm |
| SKU0303 | 12 | Hollow rod ends with Balls #5347 |
| SKU0900 | 6 | LM6UU linear bearing |
| SKU0901 | 3 | Acme threaded rod 200x10mm - 3mm pitch |
| SKU0902 | 6 | Stainless Steel rod - 300x6mm |
| SKU0903 | 6 | Ball Bearing 10x22x6mm F6900ZZ |
| SKU0904 | 3 | Motor coupler 10x5mm |
| SKU0800 | 1 | USB Camera + cable |
| SKU0011 | 3 | Adjustable foot - 15mm (OD) |
| SKU0003 | 1 | DB15 cover |
| SKUA003 | 3 | LeadScrew Top Support |
| SKU0012 | 3 | LeadScrew Top Support Cover |
| SKUA004 | 3 | LeadScrew Bottom Support |
| SKUA005 | 3 | Motor holder |
| SKUA006 | 3 | Retainer Knob |
| SKUA009 | 1 | Marker Pen Hexagon |
| SKU0200 | 3 | Carriage |
| SKU0201 | 3 | Carriage Clamp |
| SKU0300 | 1 | Effector |
| SKU0202 | 2 | Half Nut Mould |
| SKU0801 | 1 | Camera Gimbal set: plate, tulip, hinge, fork |
| SKUM208 | 6 | M2 x 8mm metal-sheet screw (End-stop switches) |
| SKUT214 | 3 | M2 x 14mm plain screw (end-stops adjustment screws) |
| SKUTN02 | 3 | M2 nut |
| SKUT308 | 15 | M3 x 8mm allen screw (DB15, Motors, Camera) |
| SKUT310 | 20 | M3 x 10mm allen screw (DB15, Top Leadscrew Support) |
| SKUT314 | 3 | M3 x 14mm allen screw (Leadscrew adjustment screws) |
| SKUT316 | 9 | M3 x 16mm allen screw (Retainer Knobs, (Carriages) |
| SKUT318 | 9 | M3 x 18mm allen screw (Effector) |
| SKUT320 | 1 | M3 x 20mm allen screw (Camera) |
| SKUT325 | 1 | M3 x 25mm allen screw (Camera) |
| SKUT330 | 6 | M3 x 30mm allen screw (Carriage springs) |
| SKUC310 | 2 | M3 x 10mm counter sunk screw unpainted (GND, Spring telephone cable) |
| SKUC325 | 16 | M3 x 25mm counter sunk screw (Arduino, Motor holders) |
| SKU0302 | 12 | M3 x 10mm threaded rod |
| SKUTN03 | 4 | M3 Nylon nut (Arduino) |
| SKUTY03 | 7 | M3 Nylock nut |
| SKUTN03 | 61 | M3 nut |
| SKUTW03 | 8 | M3 washer |
| SKUTNU2 | 24 | M4 x 4mm grub screw (T-nuts) |
| SKUTNU1 | 6 | M4 Double T-Nut |
| SKUC416 | 21 | M4 x 16mm counter sunk screw (columns and rods) |
| SKU0105 | 8 | 2.5 x 8mm precision dowel pin |
| SKU0106 | 8 | 2.5 x 10mm precision dowel pin |
| SKUE001 | 1 | Male DB15 Connector 2 rows |
| SKUE003 | 4 | M3 x 10mm plastic PCB spacer |
| SKUE002 | 3 | DB1 size microswitch without flange (for endstops) |
| SKUE001 | 2 | M3 Ring terminal connector (GND) |
| SKUE005 | 1 | Alligator Electric Clamp (auto-levelling probe) |
| SKUE006 | 1 | 100nF ceramic capacitor (spring telephone cable) |
| SKUE007 | 1 | 1-Wire male/female connector (spring telephone cable) |
| SKU0104 | 1 | 2.5 x 10mm copper wire (spring telephone cable) |
| SKU1015 | 18 | Zip-tie 2.5x100mm |
| SKU0013 | 3 | 42x42x4mm cork pieces (motor foot) |
| SKUS002 | 1 | Graphite powder bag (10 grams) |
Warning: triangle aluminium parts could have some minor scratches produced during the manufacturing processs.
Additionaly you will need the following materials (NOT INCLUDED in the kit) to complete the framework:
| Qty | Material name |
|---|---|
| 1 | Arduino Mega 2560 |
| 1 | Ramps 1.4 with 4 x A4988 Drivers |
| 3 | Stepper motors 42BYGHW609 or similar. Any bipolar motor of 40mm of length and a holding torque between 3.400-4.000 g/cm will do the job. Just take care about max. current consumption because the limit of the drivers is 2A per coil. |
| 1 | Wiring & connectors (see installing the electronics) |
| 1 | PC - ATX power suply with +12V +5V |
| 1 | Epoxy glue |
| 1 | Teflon tape (1 meter) |
