Solder Paste Dispenser Toolhead Kit
45,00€
SKU: SKUK005
Almost everything you need to build the Solder Paste Dispenser Toolhead. Includes one 10CC srynge and 4 dispensing needles.

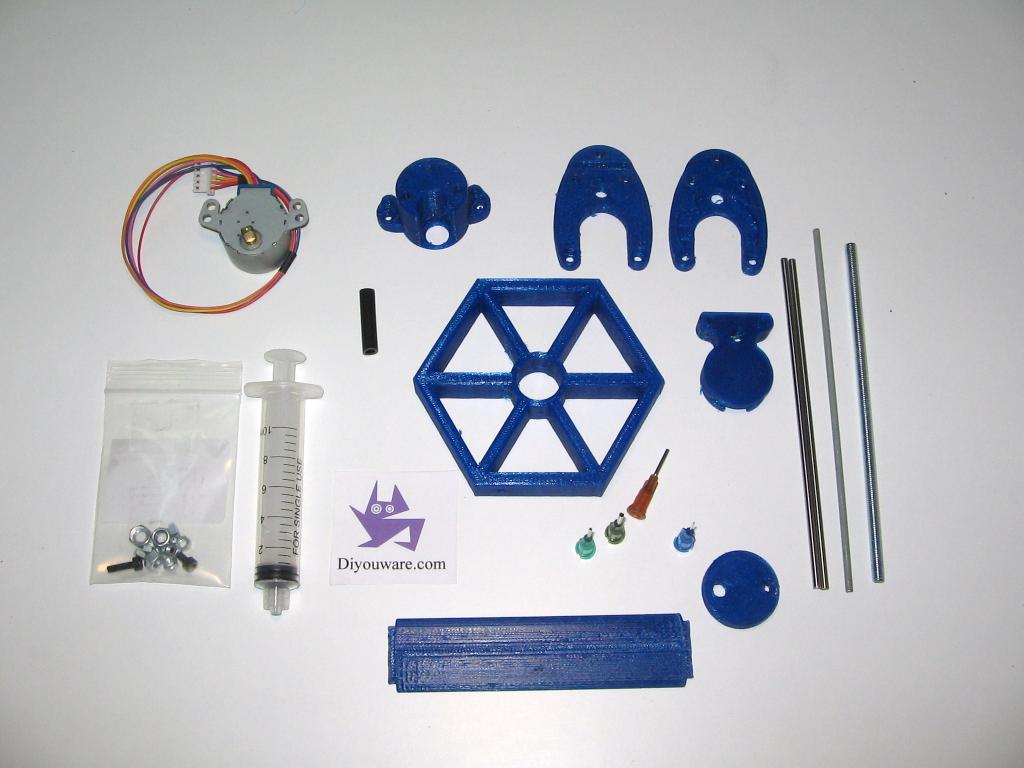

The kit includes the following materials:
| SKU | QTY | Name |
|---|---|---|
| SKU0700 | 1 | Dispenser Toolhead Hexagon |
| SKU0701 | 1 | Dispenser Motor Support |
| SKU0702 | 1 | Dispenser Top Plate |
| SKU0703 | 1 | Dispenser Carriage |
| SKU0704 | 1 | Srynge10 Holder Top |
| SKU0705 | 1 | Srynge10 Holder Bottom |
| SKU0706 | 1 | Dispenser Pillar |
| SKU0707 | 2 | 3mm steel rods - 134mm |
| SKU0708 | 1 | M5 x 140mm threaded rod |
| SKU0709 | 1 | M3 x 151mm threaded rod |
| SKU0710 | 1 | 28BYJ-48-12V motor |
| SKU0711 | 1 | 10CC Dispensing luer-lock srynge |
| SKU0712 | 4 | Dispensing needles |
| SKU0713 | 1 | 20mm of flex. plastic tube 5mm inside (motor coupler) |
| SKUTN05 | 2 | M5 nut |
| SKUTY05 | 1 | M5 nyloc nut (top) |
| SKUTN03 | 6 | M3 nut |
| SKUT310 | 2 | M3 x 10mm allen screws |
| SKUT308 | 2 | M3 x 8mm allen screws |
Additionally you will need the following materials (NOT INCLUDED in this kit) :
| QTY | Name |
|---|---|
| 1 | A4988 Motor Driver + Radiator (shared with the 3D printer Toolhead) |
| 1 | Female DB15 Connector 2 rows + casing |
| 2 | Drops of oil |
| 1 | Solder wire |
